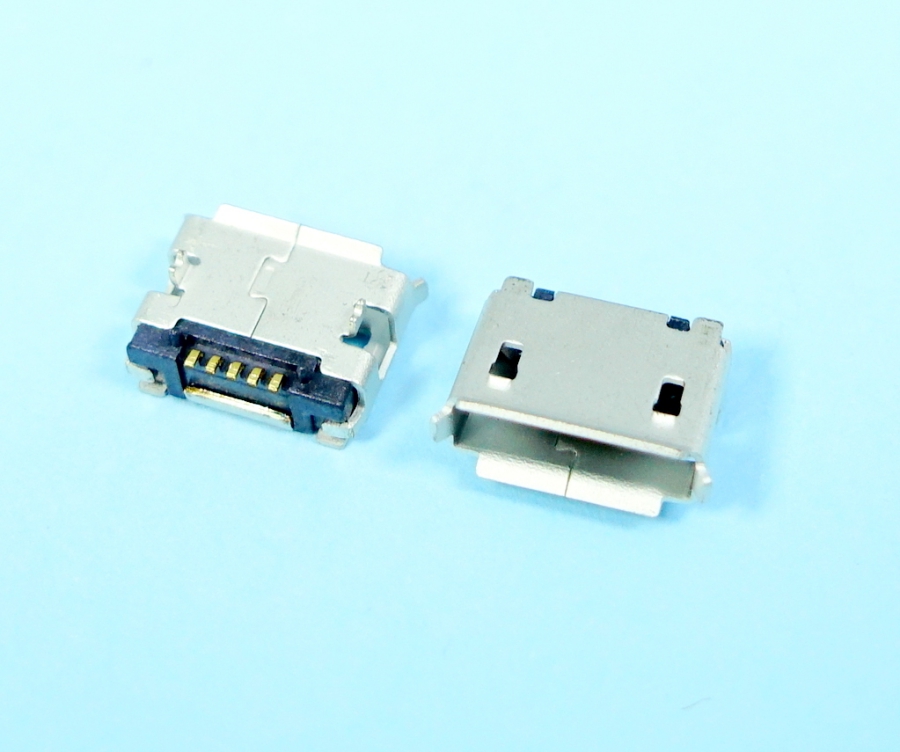

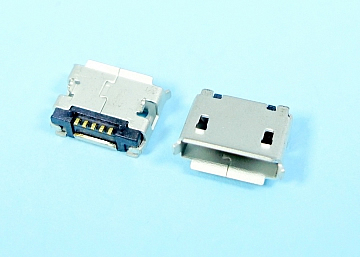

• Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: SHELL: COPPER ALLOY OR STAINLESS STEEL TIN PLATED OR NICKEL PLATED
    • TERMINAL: COPPER ALLOY, GOLD PLATED SPECIFICATION
    • CURRENT RATING: 1.8 AMP MAX (ONLY PIN 1,5), OTHER 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 50m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+85°C
