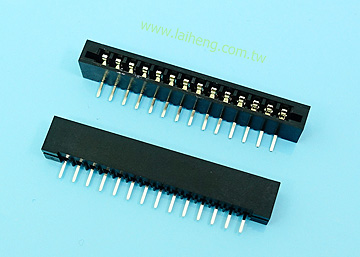

• 2.54mm Pitch FPC Series

    2.54mm Pitch FPC Series

    • No.Of Contacts:02~26
    • Type Of Entry:DIP (180∘,90∘)
    • Contact Plating:Tin

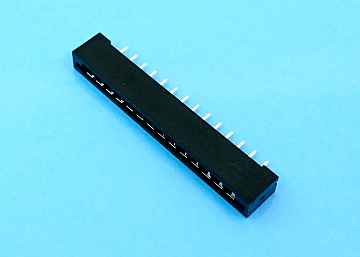

  • FPC 2.54mm NON ZIF DUAL CONTACT DIP (180°) TYPE Connector

    LFPC-GFP630231-1XX02G FPC 2.54mm NON ZIF DUAL CONTACT DIP (180°) TYPE Connector

    Specifications
    Material

    • HOUSING: HIGH TEMPERATURE THERMOPLASTIC(Nylon-9T). UL94V-O; COLOR: BLACK
    • CONTACT: COPPER ALLOY (C5191).


    Finish

    • CONTACT AREA: TIN PLATING 100 u" THICKNESS MIN.
    • SOLDERING AREA: TIN PLATING 100 u" THICKNESS MIN.;
    • UNDER PLATING: NICKEL PLATING 50 u" THICKNESS MIN. OVERALL

    Inquiry Info. PDF

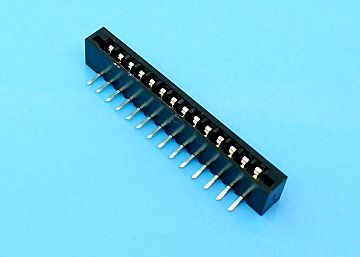

  • FPC 2.54mm NON ZIF DUAL CONTACT DIP (90°) TYPE Connector

    LFPC-GFP630231-2XX02G FPC 2.54mm NON ZIF DUAL CONTACT DIP (90°) TYPE Connector

    Specifications
    Material

    • HOUSING: HIGH TEMPERATURE THERMOPLASTIC(Nylon-9T). UL94V-O ; COLOR: BLACK
    • CONTACT: COPPER ALLOY (C5191).

    Finish

    • CONTACT AREA: TIN PLATING 100 u" THICKNESS MIN.
    • SOLDERING AREA: TIN PLATING 100 u" THICKNESS MIN.;
    • UNDER PLATING: NICKEL PLATING 50 u" THICKNESS MIN. OVERALL

    Inquiry Info. PDF
