• Function :A Type, C Type, D Type
    • Body Option : DIP, SMT
    • No.Of Contacts: 19
    • Type of Contacts :Female, Male
    • Inaulator Color:Black

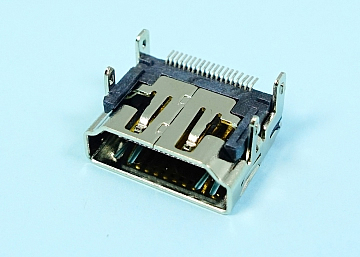

  • LHDMI-29BAH-191T-129L HDMI A Type 19Pin Female SMT SHELL DIP

    Specifications

    • Current Rating: 0.5 AMP MAX
    • Dielectric Withstanding: 500V AC For One Minute
    • Contact Resistance: 30m OHMS MAX
    • Insulation Resistance: 100M OHMS Min At DC 500V
    • Operation Temperature: -20°C ~+85°C


    Materials

    • Housing: Hi-Temp. Plastic(UL 94V-0)
    • Shell: Copper Alloy Or Spcc, Nickel Plating
    • Terminal: Copper Alloy, Gold Plated On Contact Area Tin Plating On Solder Tail

    Inquiry Info. PDF

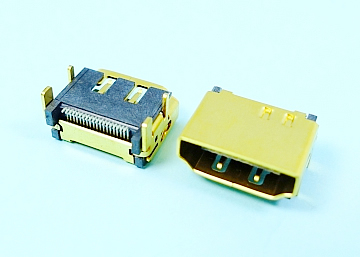

  • LHDMI-JCW0028-15U-1 HDMI A Type 19Pin Female SMT SHELL DIP (L=9.10)

    Specifications

    Electronic:

    • Contact Resistance: 20mohm max
    • Insulation Resistance: 1000 mohm min
    • Withstand Voltage:ac 500v,1min.


    Mechanical:

    • Durability: 10000 cycle.


    Environment Characteristics:

    • Operting Temperature:-55°C to +105°C

    Inquiry Info. PDF

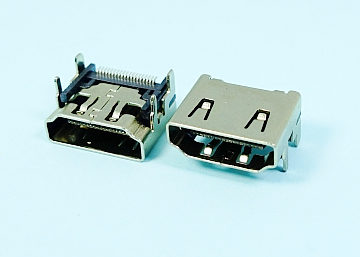

  • LHDMI-19F4-XX HDMI A Type 19Pin Female SMT SHELL DIP

    Specifications

    • Housing : lcp ul94v-0 ; color : black
    • Contact : phosphor bronze
    • Shell : brass
    • Contact : see table a min. gold plated
    • Solder Area : matte tin.
    • Under Plate : nickel
    • Shell : see table a:under plate : nickel
    • Rated Current : 0.5a max. per contact
    • Voltage : 40v dc
    • Operation Temperature : -40°C ~+80°C

    Inquiry Info. PDF

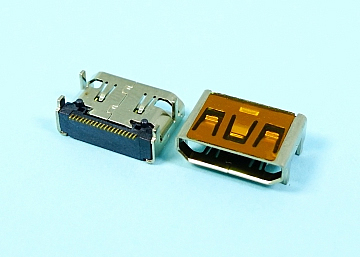

  • LHDMI-19F1-XX HDMI C Type 19Pin Female DIP

    Specifications

    • Housing : lcp ul94v-0 ; color : black
    • Contact : phosphor bronze
    • Shell : brass
    • Contact Area: see table a
    • Solder Area : gold flash
    • Under Plate : nickel
    • Shell : nickel plated 60u" over all
    • Rated Current : 0.5a
    • Voltage : 150v dc
    • Operation Temperature : -20°C ~+85°C

    Inquiry Info. PDF
