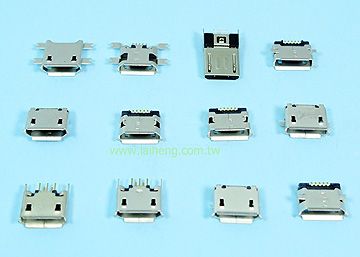

• Function:A Type,B Type,AB Type
    • Body Option : Right Angle,DIP,SMT
    • No.Of Contacts:05,10
    • Type of Contacts :Female,Male
    • Inaulator Color:Black

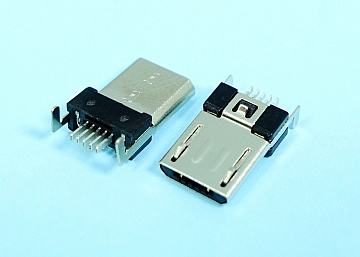

  • LMCUB-22TCH051T12BL1 MICRO USB 5Pin Male Vertical SMT Shell DIP (CUT Board Type 3)

    Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: STAINNESS STELL, NICKEL PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA TIN PLATING ON SOLDER TAIL
    • CURRENT RATING: 1.8 AMP MAX (ONLY PIN 1.5). OTHER 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+85°C

    Inquiry Info. PDF

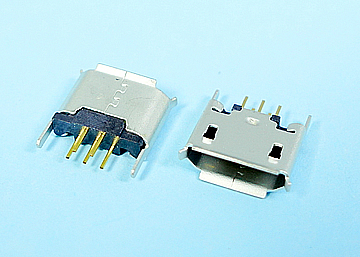

  • LMCUB-22PMH0510123LX MICRO USB B Type 5Pin Female Vertical (180゚) DIP

    Specifications

    • HOUSING: LCP+30% G.F BLACK (UL 94V-0)
    • SHELL: SUS201, MATTE TIN PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED OVER ALL
    • CURRENT RATING: 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 500V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 1000M OHMS MIN AT DC 100V
    • OPERATION TEMPERATURE: -25°C~+105°C

    Inquiry Info. PDF

  • LMCUB-22TBH051123LXX MICRO USB B TYPE 5Pin Female SMT, With Post

    Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY & STAINLESS STEEL, TIN PLATED & NICKEL PLATED
    • TERMINAL: COPPER ALLOY, GOLD PLATED OVER ALL
    • CURRENT RATING: 1.8 AMP MAX (ONLY PIN 1,5), OTHER 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+105°C

    Inquiry Info. PDF

  • LMCUB-22TBH051T124LXX MICRO USB B TYPE 5Pin Female SMT Shell DIP,With Post

    Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY & STAINLESS STEEL, TIN PLATED & NICKEL PLATED
    • TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA TIN PLATING ON SOLDER TAIL
    • CURRENT RATING: 1.8 AMP MAX (ONLY PIN 1,5). OTHER 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+105°C

    Inquiry Info. PDF

  • LMCUB-22TCH051A1207L MICRO USB B TYPE 5Pin Female SMT Board Cut Type

    Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY, TIN PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED
    • CURRENT RATING:1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+105°C

    Inquiry Info. PDF

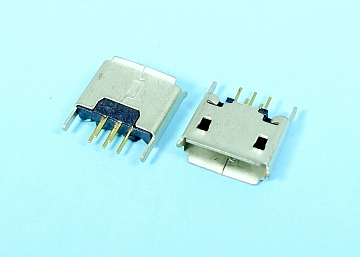

  • LMCUB-22PMH051T122L MICRO USB AB Type 5Pin Female Vertical (180゚) DIP

    Specifications

    • HOUSING: THERMOPLASTICS (UL 94V-0)
    • SHELL: SUS, TIN PLATING TERMINAL: COPPER ALLOY, GOLD PLATED OVER ALL
    • CURRENT RATING: 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 500V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 1000M OHMS MIN AT DC 100V
    • OPERATION TEMPERATURE: -25°C~+105°C

    Inquiry Info. PDF

  • LMCUB-22UBH051122LXX MICRO USB AB TYPE 5Pin Female SMT Shell DIP, With Post

    Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: SHELL: COPPER ALLOY OR STAINLESS STEEL TIN PLATED OR NICKEL PLATED
    • TERMINAL: COPPER ALLOY, GOLD PLATED SPECIFICATION
    • CURRENT RATING: 1.8 AMP MAX (ONLY PIN 1,5), OTHER 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 50m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+85°C

    Inquiry Info. PDF

  • LMCUB-22UBH051T124L MICRO USB AB TYPE 5Pin Female SMT , With Post

    Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY, TIN PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED ON CONTACT AREA TIN PLATING ON SOLDER TAIL
    • CURRENT RATING: 1.8 AMP MAX (ONLY PIN 1,5), OTHER 1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 50m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+105°C

    Inquiry Info. PDF
