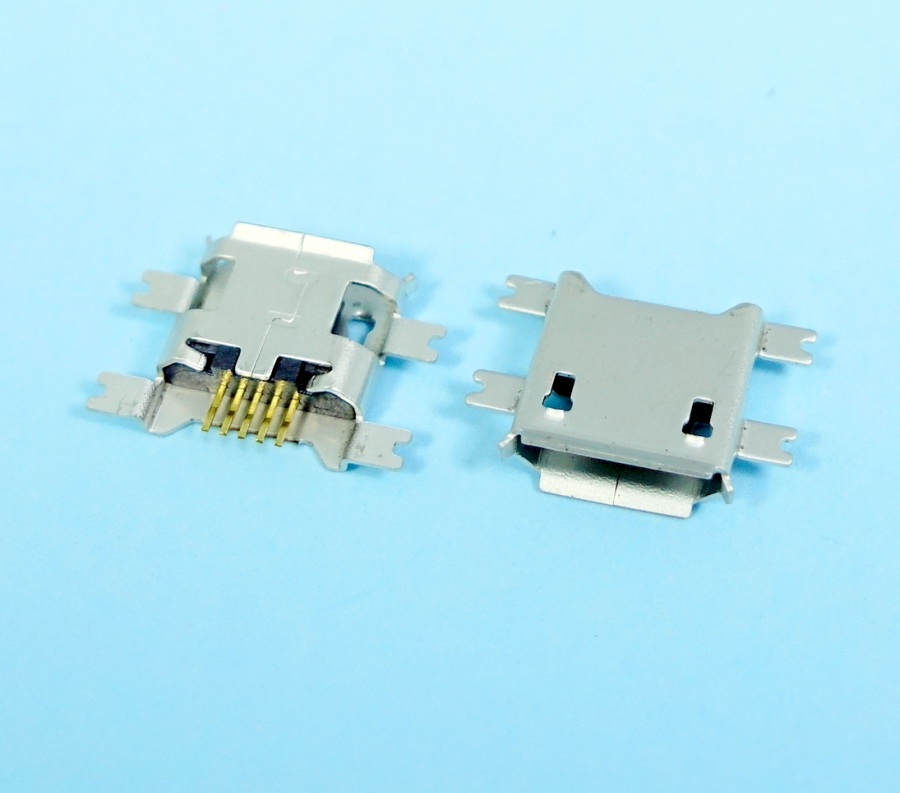

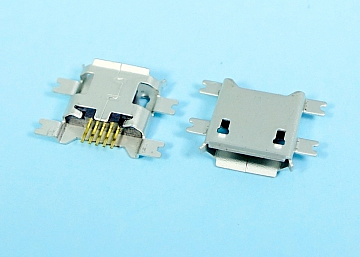

• LMCUB-22TCH051A1207L MICRO USB B TYPE 5Pin Female SMT Board Cut Type

    LMCUB-22TCH051A1207L MICRO USB B TYPE 5Pin Female SMT Board Cut Type

    Specifications

    • HOUSING: HI-TEMP. PLASTIC (UL 94V-0)
    • SHELL: COPPER ALLOY, TIN PLATING
    • TERMINAL: COPPER ALLOY, GOLD PLATED
    • CURRENT RATING:1 AMP MAX
    • DIELECTRIC WITHSTANDING: 100V AC FOR ONE MINUTE
    • CONTACT RESISTANCE: 30m OHMS MAX
    • INSULATION RESISTANCE: 100M OHMS MIN AT DC 500V
    • OPERATION TEMPERATURE: -25°C~+105°C

    PDF
