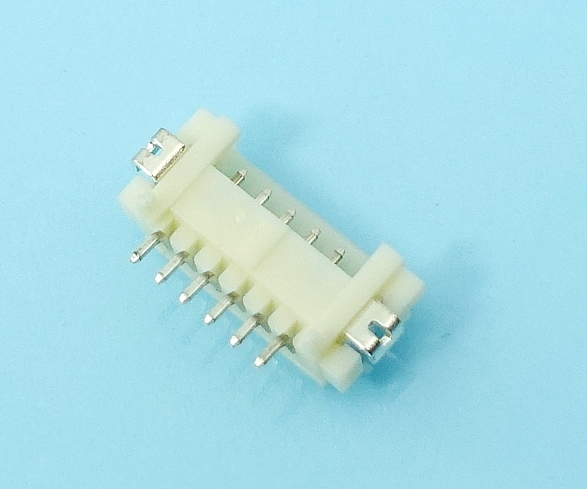

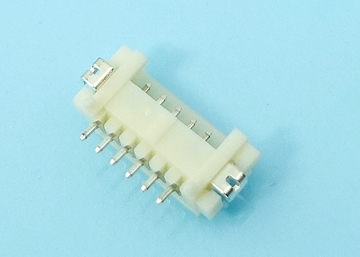

Product Wire To Board Connectors Wire to Board Connectors 1.25mm Pitch DF13 Series LW-DF13R-XX-SPX 1.25mm Pitch Single Row Wafer , 90° SMT ,With Post Specifications Current Rating: 1A AC,DC Voltage Rating: 100V AC,DC Temperature Range: -25°C ~ +85°C. Contact Resistance: 20mΩ Max. Insulation Resistance: 500MΩ Min. Withstanding Voltage: 500V AC/Min. Pin Material: Phosphor Bronze, Tin-plated. Solder Tabs: Brass, Tin-plated. Material: Nylon 6T, UL94V-0. PDF 請寫下你對於產品的建議然後點擊 加入詢價清單 以詢價 加入詢價清單 查看詢價清單 返回
