• Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25℃~+85℃
    • Contact Resistance: 20mΩ/max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.

  • LW-DF13S-XX-D 1.25mm Pitch Single Row Wafer, 180° DIP

    Inquiry Info.

  • LW-DF13R-XX-D 1.25mm Pitch Single Row Wafer ,90° DIP

    Inquiry Info.

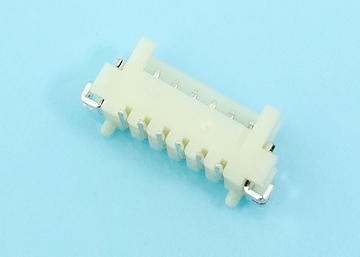

  • LW-DF13S-XX-SPXX 1.25mm Pitch Single Row Wafer, 180° SMT ,With Post

    Specifications

    • Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25°C ~ +85°C.
    • Contact Resistance: 20mΩ Max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.
    • Pin Material: Phosphor Bronze, Tin-plated.
    • Solder Tabs: Brass, Tin-plated.
    • Material: Nylon 6T, UL94V-0.

    Inquiry Info. PDF

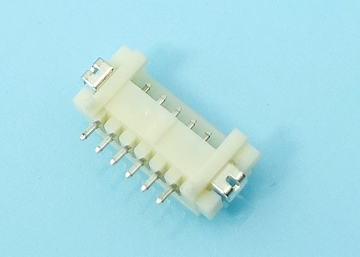

  • LW-DF13R-XX-SPX 1.25mm Pitch Single Row Wafer , 90° SMT ,With Post

    Specifications


    • Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25°C ~ +85°C.
    • Contact Resistance: 20mΩ Max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.
    • Pin Material: Phosphor Bronze, Tin-plated.
    • Solder Tabs: Brass, Tin-plated.
    • Material: Nylon 6T, UL94V-0.

    Inquiry Info. PDF

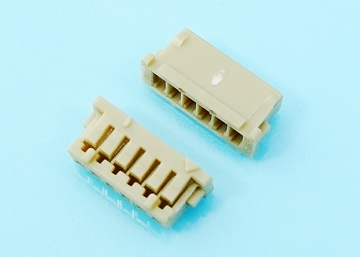

  • LH-DF13-XX 1.25mm Pitch Single Row Crimp Terminal Housing

    Inquiry Info.

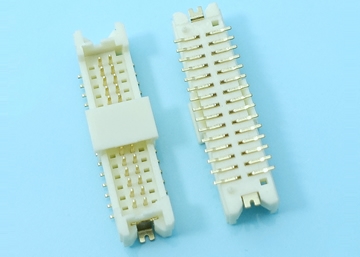

  • LW-DF13S-2xXXGO-SPRC 1.25 mm Pitch Dual Row Wafer, 180° SMT , With Peg

    Specifications

    • HOUSING: THERMOPLASTIC, HIGH TEMP (NYLON-6T), UL 94V-0;COLOR:NATURAL.
    • CONTACT: BRASS /GOLD-FLASH.
    • FITTING NAIL: BRASS /GOLD-FLASH.
    • VACUUM COVER: THERMOPLASTIC, HIGH TEMP (NYLON-6T), UL 94V-0;COLOR:NATURAL.

    Inquiry Info. PDF

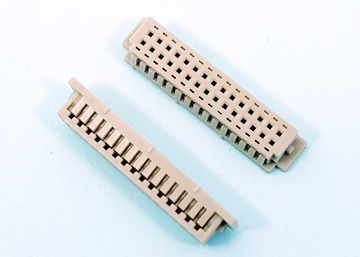

  • LH-DF13-2xXX 1.0mm Pitch Dual Row Crimp Terminal Housing

    Inquiry Info.

共計 7 項
