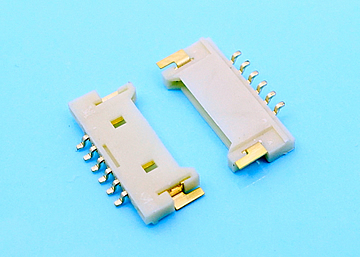

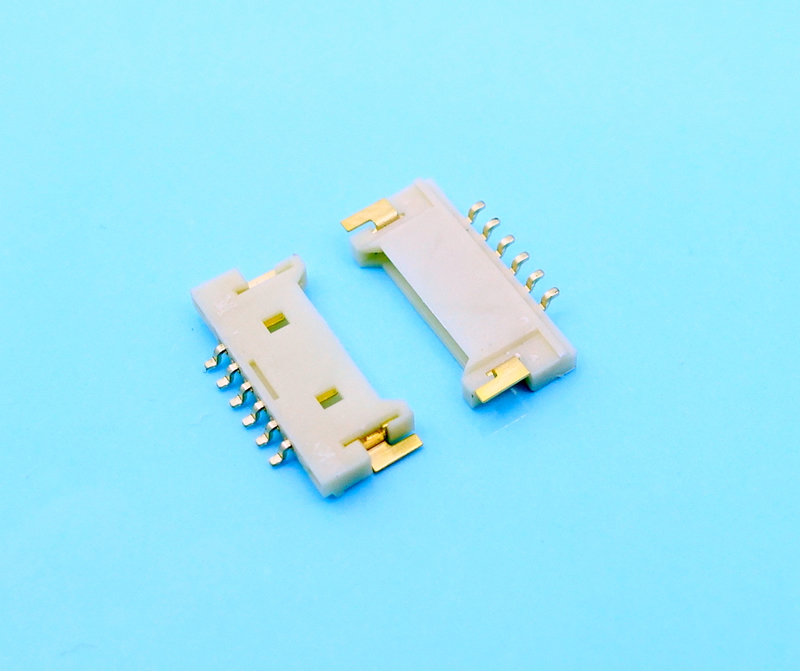

LW-MX1251R-XX-SR-LF30 1.25 mm Pitch Single Row Wafer, 90° SMT

Specifications

• Current rating: 1A AC, DC
• Voltage rating: 125V AC,DC
• Temperature range: -25°C ~ +85°C
• Insulation resistance: 100MΩ Min.
• Withstanding voltage: 500V AC/ minute.
• Contact resistance: 20mΩ Max.
• Insulator: High temperature thermoplastics (Nylon-6T) / Color:Natural.
• Contact: Phosphro Bronze. Solder Nail: Brass.
• Plating: Gold plated over Nickel.
• Circuits: 2~20,30 Pin.
