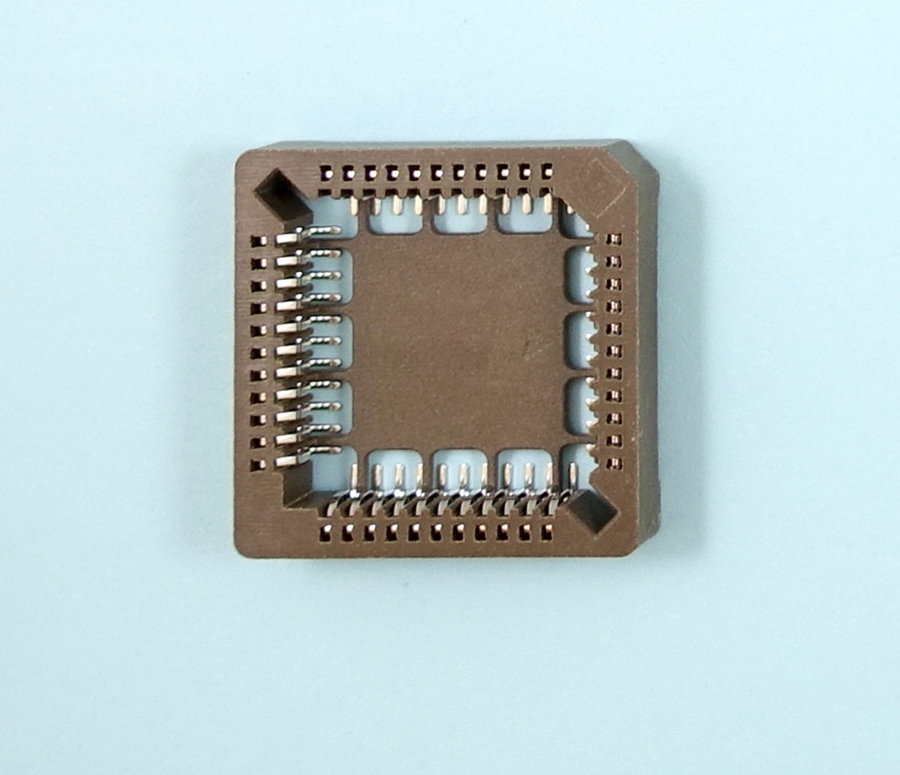

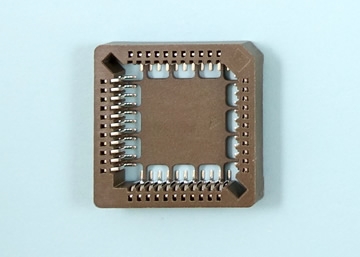

LPLCC0XXS 1.27mm Center Surface Mount PLCC Chip Carrier Socket SMD

Specifications

• Temperature range -50 to 105 .
• Current rating: 1 AMP.
• Capacitance: 1.0 Picoforads (Max).
• Contact resistance: 30 Milliohms (Max).
• Insulation resistance: 1000 Megohmx (Max).
• Withstanding voltage: AC 600 Vrms.


Material

• Contact material: Phosphor bronze JIS 5191.
• Contact plating: 100u" Tin over 40u" Nickel.
• Insulator: Hi-temp PPS+GF40%, UL 94V-0,240 .
• Insulator Color: Brown.
