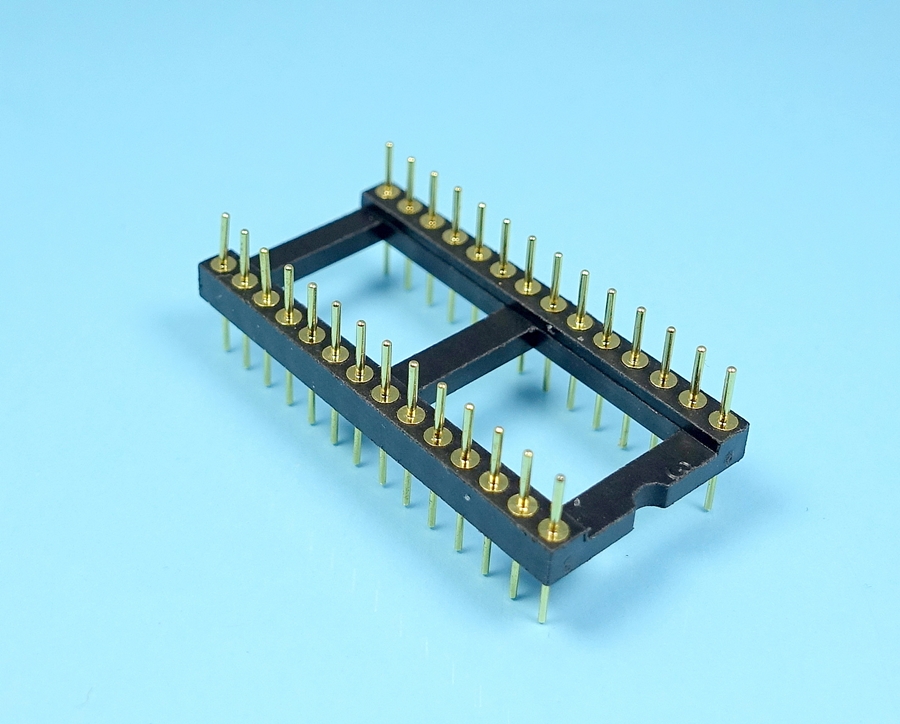

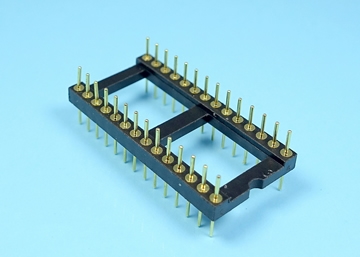

LICS254M060XX(N)GO 2.54mm Machined Pin Header IC Socket (0.6 inch Wide)

Specifications


Material

• Insulator body (housing): PBT, UL94-V0, Color-Black.
• Pin : Brass, machined, C3602.
• Plating:Gold Plated.
• 2um/80u" nickel,0.025um/full gold-flashed.


Electrical:

• Current rating: 3 Amps / contact max.
• Insulation resistance: > 1000 MΩ at V=100V.
• Operating: 60 Veff.


Mechanical:

• Operating temperature: Gold plated: -55℃ to +125℃.
• Soldering temperature: +200℃ ,10s max.
