• Specifications

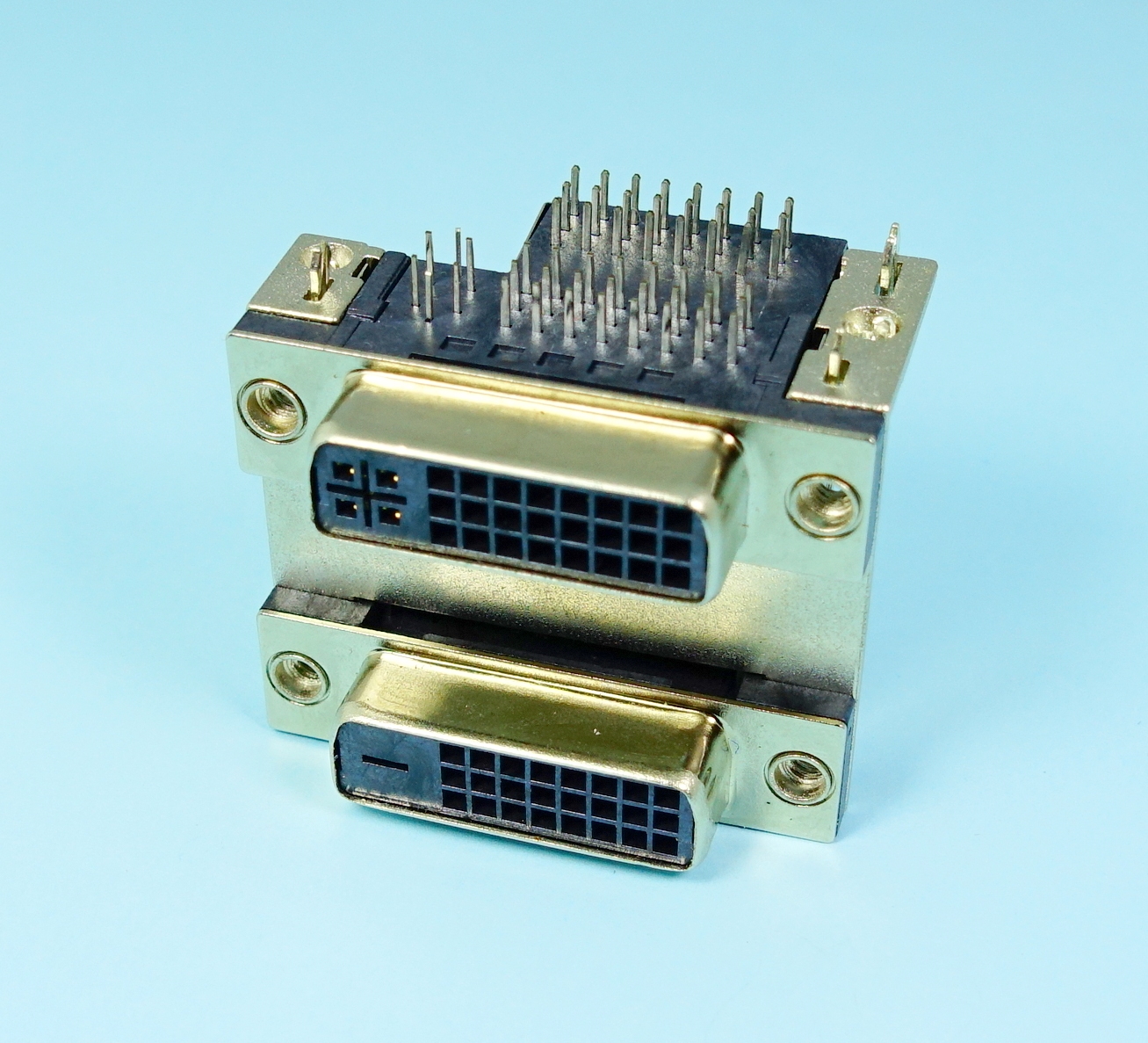

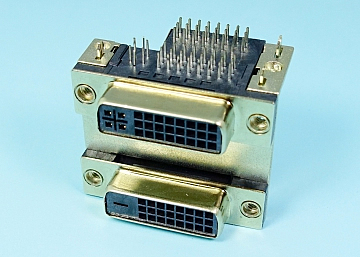

    • DVI
    • Operation Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance(UPPER): 30 Milliohms Max. Contact Resistance(LOWER): 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 Kgf Max.
    • Total Unmating Force: 1.0 kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing(UPPER):PBT, UL 94V-0, Color:Black.
    • Housing (LOWER):PBT, UL 94V-0, Color:Black.
    • Terminal:Copper Alloy
    • Shell:SPCC.
    • Shield:Stainless Steel Boardlock:Copper Alloy.
    • Bracket:Zinc Alloy.


    Finish

    • Terminal:Gold Plated over Nickel at Contact Area. Tin Plated over Nickel at Solder Ared.
    • Shell:Nickel Plated.
    • Boardlock:Tin Plated.
    • Bracket:Nickel Plated.
