• Specifications

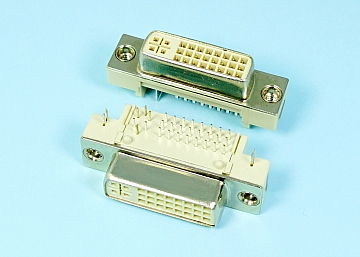

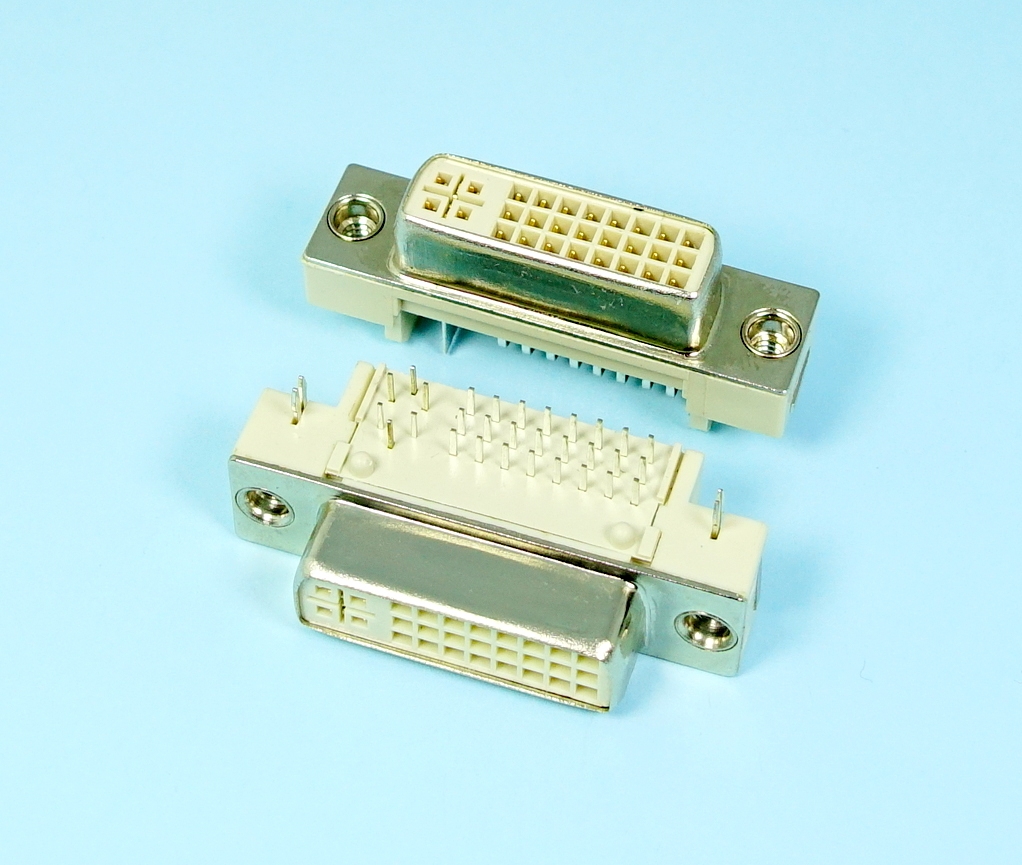

    • DVI-I
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance: 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 Kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing:PBT, UL 94V-0, Color:Ivory.
    • Latch:PA66, UL 94V-0, Color:Ivory.
    • Terminal:Copper Alloy.
    • Shell:SPCC.
    • Boardlock:Steel.
    • Rivet:Copper Alloy


    Finish

    • Terminal:Selected Gold Plated in Contact Area, 100u" MIN. Tin Plated in Solder Area, 30u" MIN. Nickel Underplated Overall.
    • Shell:Nickel Plated 80u" MIN, Over Cu 50u” MIN.
    • Boardlock:Tin Plated 100u" MIN, Over Nickel 30" MIN.
    • Rivet:Nickel Plated 60" MIN, Overall.
