• Specifications

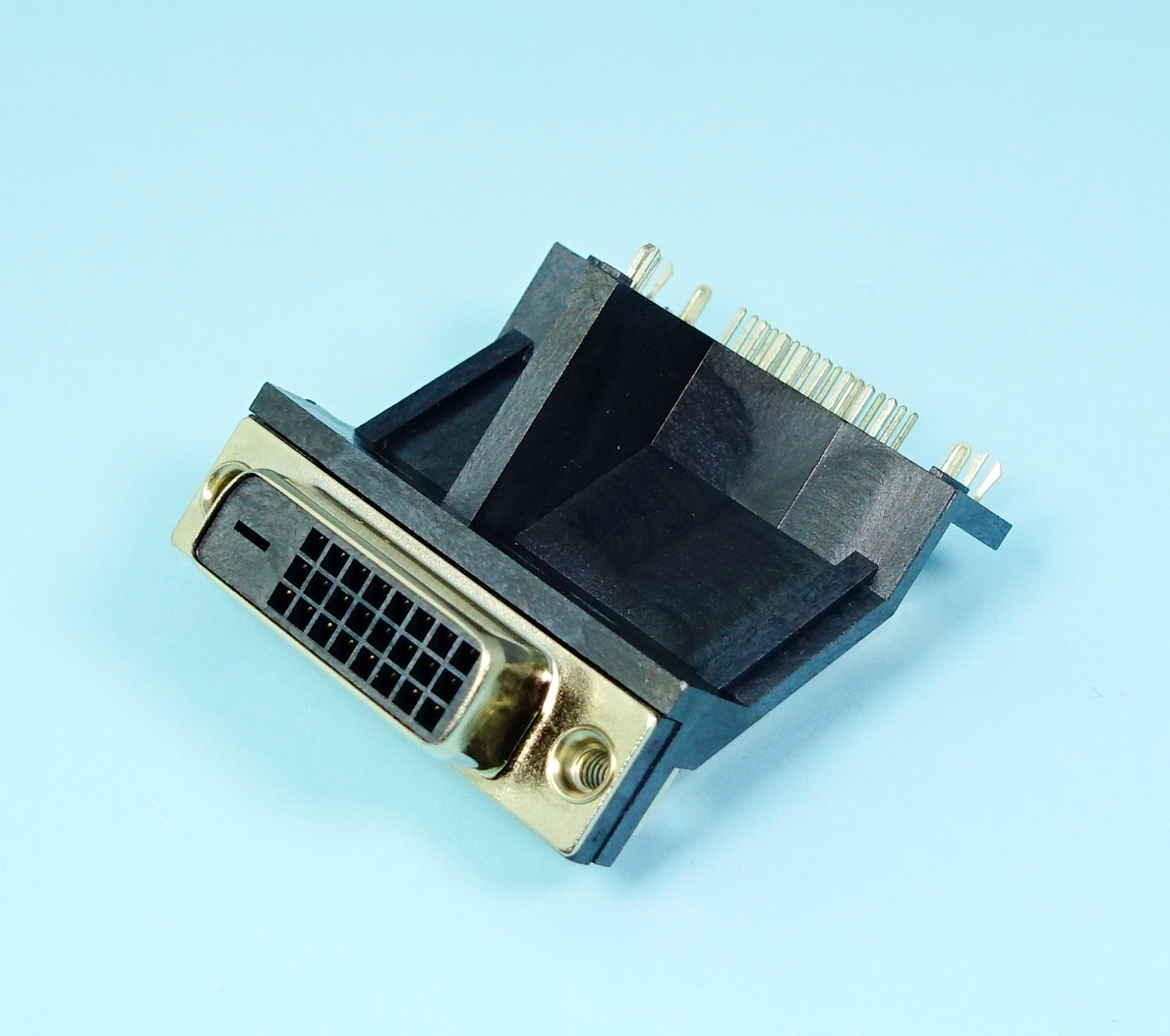

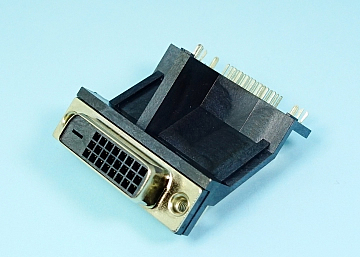

    • DVI
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating: 1.5 Ampere per Contact
    • Contact Resistance(UPPER): 30 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 kgf Min.
    • Operating Temperature: -55°C to +85°C
    • Screw Locking Force: 2.5-3.0 kgf.
    • Screw Back Force: 1.0 kgf Min.


    Material

    • Housing:LCP, UL 94V-0, Color:Black.
    • Bracket:LCP, UL 94V-0, Color:Black.
    • Terminal:Copper Alloy.
    • Shell:SPCC.
    • Shield(outside):Stainless Steel.
    • Boardlock:Steel.
    • Rivet:Copper Alloy
    • Screw:Copper Alloy


    Finish

    • Terminal:Gold Plated over Nickel at Contact Area.Tin Plated over Nickel at Solder Ared.
    • Shell:Nickel Plated.
    • Shield(outside):Solderable Nickle Plated.
    • Boardlock:Tin Plated.
    • Rivet:Nickel Plated.
    • Screw:Nickel Plated.
