• Specifications

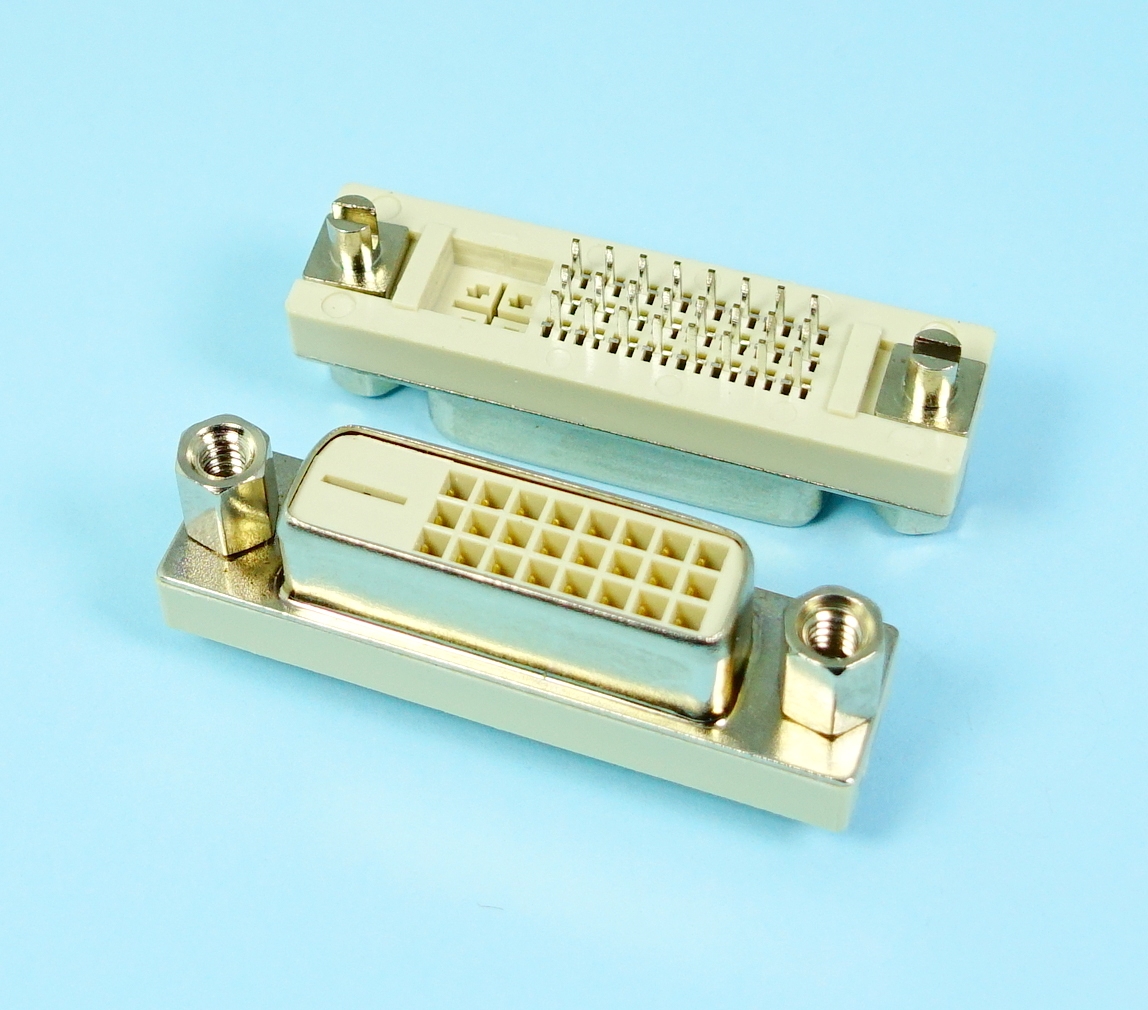

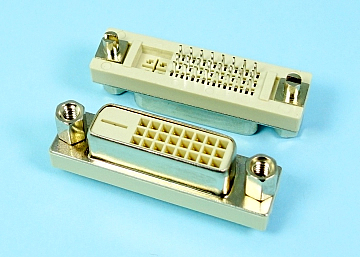

    • DVI-D
    • Voltage: 40 VAC(RMS) Max.
    • Current Rating:
    • Ampere per Contact
    • Contact Resistance: 20 Milliohms Max.
    • Insulation Resistance: 1000 Megohms Min.
    • Dielectric Withstanding Voltage: 500V DC(RMS)
    • Total Mating Force: 4.5 kgf Max.
    • Total Unmating Force: 1.0 Kgf Min.
    • Operating Temperature: -55°C to +85°C


    Material

    • Housing:PBT, UL 94V-0, Color:Ivory.
    • Terminal:Copper Alloy(Brass).
    • Shell:SPCC
    • Boardlock:Copper Alloy.
    • Screw:Copper Alloy.


    Finish

    • Terminal:Gold Flash Plated over Nickel at Contact Area. Tin Plated over Nickel at Solder Ared.
    • Shell:Nickel Plated.
    • Boardlock:Tin Plated.
    • Screw:Nickel Plated.
