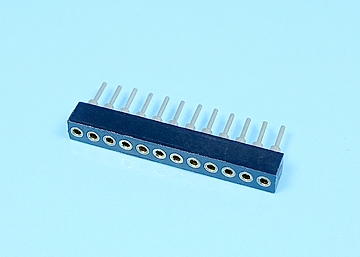

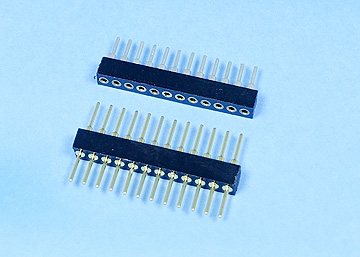

LSIP1788-1xXX 1.778mm SIP SOCKET Single Row Round Pin
Specifications
Material
- Insulator body(housing):PBT black/UL94-V0)
- Pin(outer sleeve):Brass,machined,
- Tin plated:nickel plated/150u"Tin plated
- Clip(6 finger):Beryllium copper
- Gold plated:.nickel plated/full Gold-flashed
Electrical:
- Current rating: 3 Amps /contact Max
- Contact resistance: 20mΩ/ contact Max
- Insulation resistance: >1000 MΩ at V=100 V Min
- Operating: 60V Ac/Dc
Mechanical:
- Operating temperature:
- Tin plated : -40°C to +105°C
- Soldering temperature: + 240° C 10s max
-

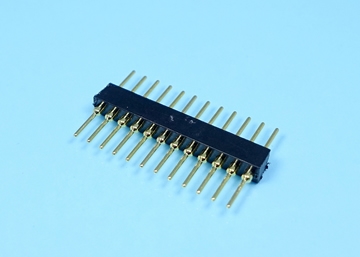

LSIP1778M-1xXXGO 1.778mm Machined Pin Header Single Row (Gold Plated)
Specifications
Material
- Insulator body(housing): PBT (black /UL 94V-0)
- Pin :Brass, machined,
- Plating:Gold plated:>40u"nickel/G-F(0.4~1u" )
Electrical:
- Current rating: 3 Amps/contact max
- Operating :60 Veff
- Insulation resistance:>1000 MΩ at =100V
Mechanical:
- Operating temperature: Gold platde:-55°C to+
(continous) Tin plated: -40°C to+105°C - Soldering temperature: + 260°C ,10s max
