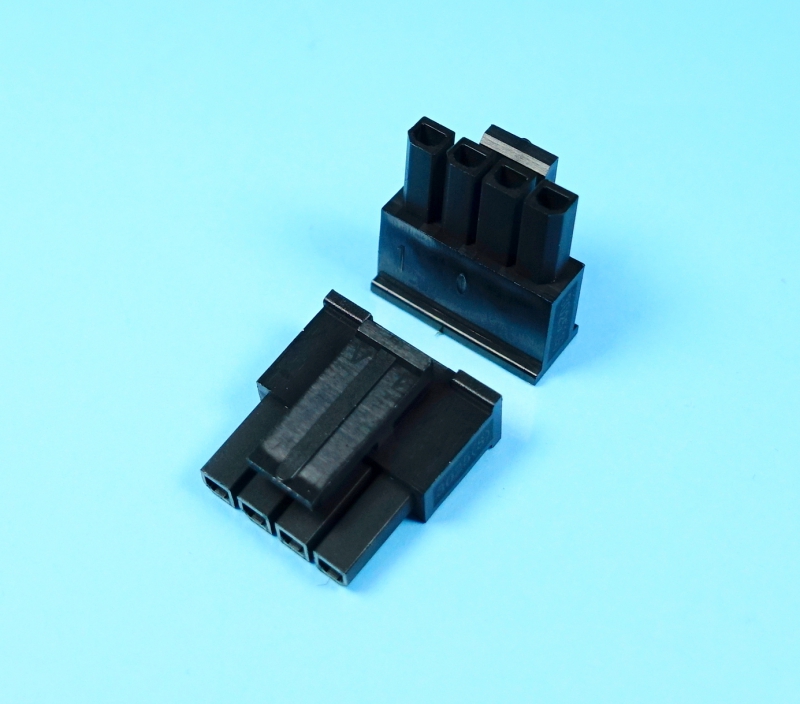

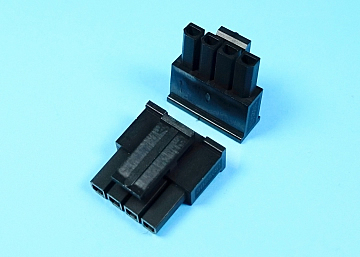

LH-MF300M-XX 3.0mm Pitch Dual Row Crimp Terminal Housing ,Receptacle

Specifications

• 2 ~ 12 circuits available
• Material: UL 94V-0 nylon 66
• Accepts LT-MF300_F_ terminal
• Mates with LH-MF300M-XX housing
• Standard color: Black
• Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
• Voltage rating: 250V AC(RMS) or DC
• Contact resistance: 10mΩMax.
• Dielectric strength: 1500V AC/minute
• Temperature rise: 30°C max. (carry rated current load)
