• 1.27mm (.050") Female Pin Header: 180° /Straight

    Specifications

    • Current Rating :1 Amp
    • Insulator Resistance :1000 Megohms Min.
    • Contact Resistance :20 m ohms max.
    • Dielectric Withstanding:AC 500 V
    • Operating Temperature :-40℃ ~ +105℃
    • Soldering Temperature :260℃ for 3~5sec Max.
    • Insulator Material :Nylon 6T 、LCP (UL94V-0), Black.
    • Contact Material :Copper Alloy
    • Contact Plating :Tin,Gold(standard)

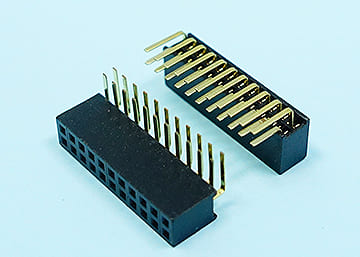

  • LPCB127BRG X0/2.5-2xXX 1.27mm Female Header H:4.3 W:3.0 DIP:2.5 Right Angle Dual Row

    Specifications

    • Current Rating: 1 Amp
    • Insulator Resistance: 1000 Megohms Min.
    • Contact Resistance: 20 m ohms max.
    • Dielectric Withstanding: AC 500 V
    • Operating Temperature: -40°C ~ +105℃
    • Contact Material: Phosphor Bronze
    • Standard: Gold Flash all over
    • Insulator Material: Polyester,UL 94V-0
    • Standard: Nylon-6T(Black)
