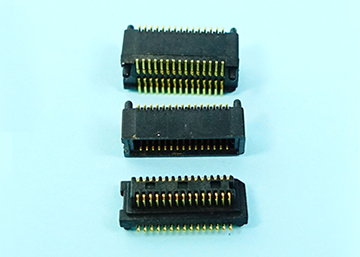

• Type OF Contacts: Male, Female
    • PCB Mounting: SMT (Surface Mount)
    • Available Pins:20~100 Contacts
    • Mated Height: 3.5~5.0mm
    • Temperature:-55゚C~125゚C
    • Voltage:100V
    • Current:0.5A

  • LBTB-05MAxxxC1 0.50mm(0.0197") Pitch Board To Board Male Connector SMT Type H=2.4mm,Pegs ,CAP

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF

  • LBTB-05MBxxxC1 0.50mm(0.0197") Pitch Board To Board Male Connector SMT Type H=2.74mm,Pegs ,CAP

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF

  • LBTB-05FAxxxC1 0.50mm(0.0197") Pitch Board To Board Female Connector SMT Type H=2.74mm,Pegs ,CAP

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF

  • LBTB-05FBxxxC1 0.50mm(0.0197") Pitch Board To Board Female Connector SMT Type H=3.70mm,Pegs ,CAP

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF

  • LBTB-05MAxxxxx+LBTB-05FAxxxxx 0.50mm(0.0197") Pitch Board To Board Connector SMT Type Male+Female H=3.50mm,Pegs

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF

  • LBTB-05MBxxxxx+LBTB-05FAxxxxx 0.50mm(0.0197") Pitch Board To Board Connector SMT Type Male+Female H=4.00mm,Pegs

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF

  • LBTB-05MAxxxxx+LBTB-05FBxxxxx 0.50mm(0.0197") Pitch Board To Board Connector SMT Type Male+Female H=4.50mm,Pegs

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF

  • LBTB-05MBxxxxx+LBTB-05FBxxxxx 0.50mm(0.0197") Pitch Board To Board Connector SMT Type Male+Female H=5.00mm,Pegs

    Specifications

    Material

    • Housing: Nylon-9T Halogen Free, UL94V-0, Black
    • Contact : Copper Alloy.
    • Plating : Gold Plating.


    Temperature:-55 to +125°


    Electrical

    • Voltage: 50V.
    • Current: 0.5A.
    • Contact Resistance : 40m Ω max.
    • Dielectric Withstanding Voltage: 500V AC / 1 min.
    • Insulation Resistance: 100M Ω min.


    Available Pins : 20~100 Contacts

    Inquiry Info. PDF
