• Specifications

    Material And Finish

    • Housing: Nylon 6T, UL94V-0, Color-Black.
    • Terminal: Sq 0.50mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 800V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

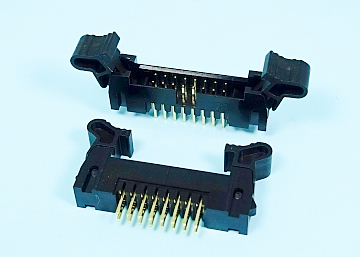

  • LBHE200S-XX 2.0 mm Pitch Box Header With Short Latches Straight Type

    Specifications

    Material And Finish

    • Housing: Nylon 6T, UL94V-0, Color-Black.
    • Terminal: Sq 0.50mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 800V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info. PDF

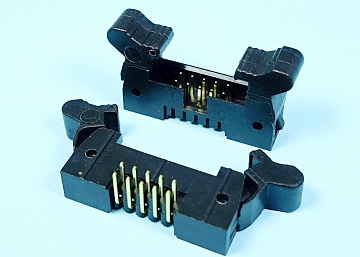

  • LBHE200R-XX 2.0 mm Pitch Box Header With Short Latches Right Angle Type

    Specifications

    Material And Finish

    • Housing: Nylon 6T, UL94V-0, Color-Black.
    • Terminal: Sq 0.50mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 800V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info. PDF

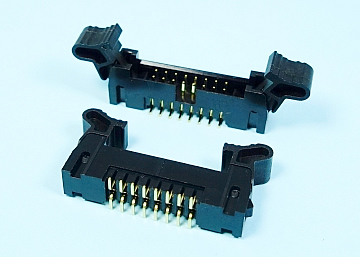

  • LBHE200T-XX 2.0 mm Pitch Box Header With Short Latches SMT Type

    Specifications

    Material And Finish

    • Housing: Nylon 6T, UL94V-0, Color-Black.
    • Terminal: Sq 0.50mm, Brass, Gold Plating.


    Electrical Characteristics

    • Current Rating: 1.0 Amp. Max.
    • Dielectric Withstanding Voltage: 800V AC RMS for 60 Seconds.
    • Insulator Resistance: 1000M Ohms Min at 500V DC.


    Mechanical Characteristics

    • Operation Temperature: -55°C to +105°C.

    Inquiry Info. PDF
