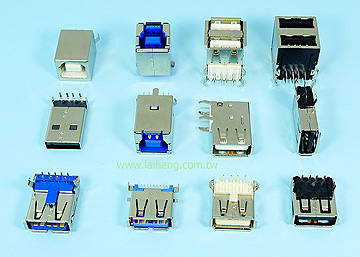

• USB Series

    USB Series

    • Function :A Type,B Type
    • Body Option : DIP Straight,DIP Right Angle
    • No.Of Contacts:04,08,09
    • Type of Contacts :Female,Male
    • Inaulator Color:White,Black,Blue

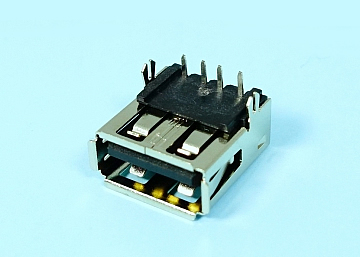

  • USB A Type 4Pin Female Board Side DIP 90°

    LUB-22AC041T11HLX2 USB A Type 4Pin Female Board Side DIP 90°

    Specifications

    • Current Rating: 1 amp max
    • Dielectric Withstanding: 500v ac for one minute
    • Contact Resistance: 30m ohms max
    • Insulation Resistance: 1000m ohms min at dc 500V
    • Operation Temperature: -40°C～+85°C


    Materials

    • Housing: thermoplastic color: black & white(ul 94v-0)
    • Shell: copper alloy, nickel plating
    • Terminal: copper alloy, gold flash plated on contact area tin plating on solder tail

    Inquiry Info. PDF

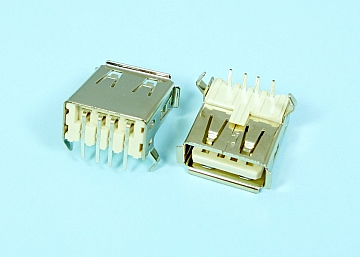

  • USB A Type 4Pin Female Board UPRIGHT 90°

    LUB-22AU041T117LX12 USB A Type 4Pin Female Board UPRIGHT 90°

    Specifications

    • Current Rating: 1 amp max
    • Dielectric Withstanding: 500v ac for one minute
    • Contact Resistance: 30m ohms max
    • Insulation Resistance: 1000m ohms min at dc 500V
    • Operation Temperature: -40°C～+105°C


    Materials

    • Housing: thermoplastics lcp/ pbt (ul 94v-0)
    • Shell: copper alloy, nickel plating / spcc
    • Terminal:  copper alloy, gold plated on contact area tin plating on solder tail

    Inquiry Info. PDF

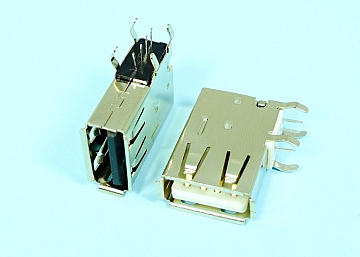

  • USB A Type 4Pin Female REVERSE DIP

    LUB-KS001RDANBL USB A Type 4Pin Female REVERSE DIP

    Specifications

    • Contact Resistance: 30m Ohm Max.
    • Insulation Resistance: 1000M Ohm Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 750V AC (rms) for 1 Minute(Rev. 1.1)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    Inquiry Info. PDF

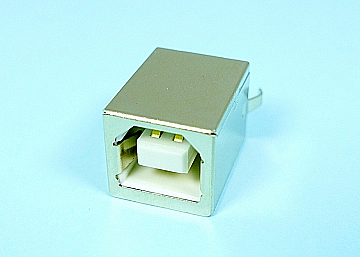

  • USB B Type 4Pin Female Board Side DIP 180°

    LUB-KS001KBNWL USB B Type 4Pin Female Board Side DIP 180°

    Specifications

    • Contact Resistance: 30m Ohm Max.
    • Insulation Resistance: 1000M Ohm Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 750V AC (rms) for 1 Minute(Rev. 1.1)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    Inquiry Info. PDF

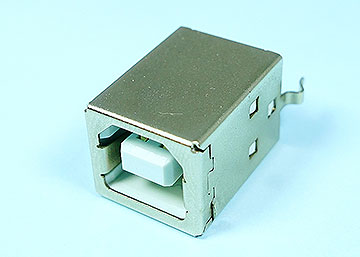

  • USB B Type 4Pin Female Board Side DIP 180° (L=16.1)

    LUB-22BA041T114L2 USB B Type 4Pin Female Board Side DIP 180° (L=16.1)

    Specifications

    • Current Rating: 1 amp max
    • Dielectric Withstanding: 1000v ac for one minute
    • Contact Resistance: 50m ohms max
    • Insulation Resistance: 100m ohms min at dc 100V
    • Operation Temperature: -25°C～+85°C
      　

    Materials

    • Housing:  HI-TEMP PLASTIC
    • COLOR:  WHITE(UL 94V-0)
    • Shell: COPPER ALLOY OR SPCC, NICKEL PLATING
    • TERMINAL:  COPPER ALLOY, GOLD PLATED ON CONTACT AREA,TIN PLATING ON SOLDER TAIL

    Inquiry Info. PDF

  • LUB-22BA041T117L1X USB B Type 4Pin Female Board Side DIP 180° (L=16.25)

    Specifications

    • Current Rating: 1.5 amp max
    • Dielectric Withstanding: 500v ac for one minute
    • Contact Resistance: 30m ohms max
    • Insulation Resistance: 1000m ohms min at dc 100V
    • Operation Temperature: -25°C～+85°C
      　

    Materials

    • Housing:  HI-TEMP PLASTIC (UL 94V-0)
    • COLOR:  WHITE/BLACK/BLUE
    • Shell: COPPER ALLOY OR SPCC, NICKEL PLATING
    • TERMINAL:  COPPER ALLOY, GOLD PLATED ON CONTACT AREA,TIN PLATING ON SOLDER TAIL

    Inquiry Info.

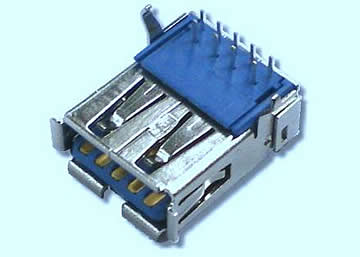

  • USB 3.0 A Type 9Pin Female Board Side DIP 90°

    LUB-22EC09XT111L USB 3.0 A Type 9Pin Female Board Side DIP 90°

    Specifications

    • Current Rating: 1.5 amp max
    • Dielectric Withstanding: 500v ac for one minute
    • Contact Resistance: 30m ohms max
    • Insulation Resistance: 1000m ohms min at dc 500V
    • Operation Temperature: -30°C～+85°C


    Materials

    • Housing: thermoplastics (ul 94v-0),blue (pantone 300c)
    • Shell: spcc, nickel plating
    • Terminal:  copper alloy, gold plated on contact area tin plating on solder tail

    Inquiry Info. PDF

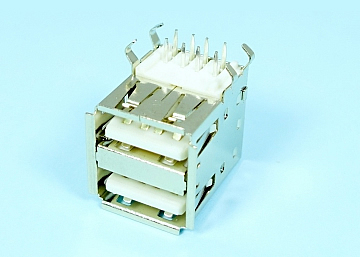

  • DUAL USB A TYPE 8 Pin Female DIP 90ﾟ

    LUBD-KS002A1NXL DUAL USB A TYPE 8 Pin Female DIP 90ﾟ

    Specifications

    • Contact Resistance: 30m Ohm Max.
    • Insulation Resistance: 1000M Ohm Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 750V AC (rms) for 1 Minute(Rev. 1.1)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    Inquiry Info. PDF

  • DUAL USB A TYPE FLAT 8 PIN Female DIP 90ﾟ

    LUBD-KS002DA1NBL DUAL USB A TYPE FLAT 8 PIN Female DIP 90ﾟ

    Specifications

    • Contact Resistance: 30m Ohm Max.
    • Insulation Resistance: 1000M Ohm Min. At 500VDC.
    • Rated Voltage And Current: 1.5A At 250VAC Minimum.
    • Dielectric Withstanding Voltage: 750V AC (rms) for 1 Minute(Rev. 1.1)
    • Durability (Life Test): 1500 Cycles
    • Insertion Force: 35 Newtone Maximum.
    • Extraction Force: 10 Newtone Minimum.

    Inquiry Info. PDF

共計 9 項
