Micro Fit 300
Specification:
- Current rating: 5A AC, DC
- Voltage rating: 250V AC, DC
- Contact resistance: 10m Max.
- Dielectric withstanding voltage: 1500V AC/minute
- Ambient temperature range: -25°C ~ 85°C
-

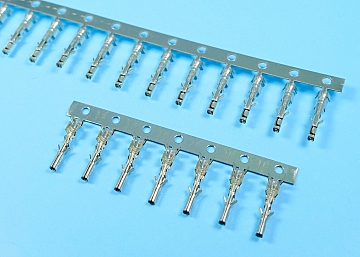

LT-MF300__M___-PS 3.0mm Pitch Male Crimp Terminal
Specifications
- Material: Phosphor bronze
- Used in LH-MF300F-__ series housing
- Wire range: #20 ~ #30 AWG
- Thickness: 0.2mm
- Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
- Voltage rating: 250V AC(RMS) or DC
- Contact resistance: 10mΩMax.
- Dielectric strength: 1500V AC/minute
- Temperature rise: 30°C max. (carry rated current load)
-

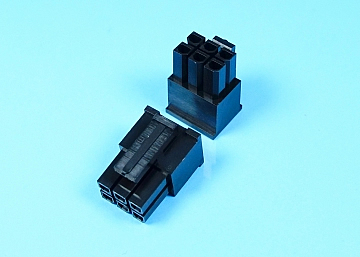

LH-MF300M-XX 3.0mm Pitch Dual Row Crimp Terminal Housing ,Receptacle
Specifications
- 2 ~ 12 circuits available
- Material: UL 94V-0 nylon 66
- Accepts LT-MF300_F_ terminal
- Mates with LH-MF300M-XX housing
- Standard color: Black
- Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
- Voltage rating: 250V AC(RMS) or DC
- Contact resistance: 10mΩMax.
- Dielectric strength: 1500V AC/minute
- Temperature rise: 30°C max. (carry rated current load)
-

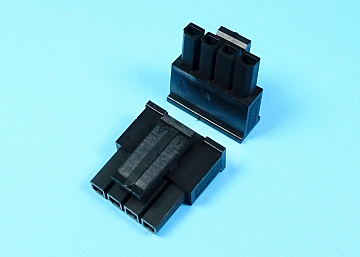

LH-MF300M-2xXX 3.0mm Pitch Single Row Crimp Terminal Housing,Receptacle
Specifications
- 2 ~ 24 circuits available
- Material: UL 94V-0 nylon 66
- Accepts LT-MF300_F_ terminal
- Mates with LH-MF300M-2xXX housing
- Standard color: Black
- Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
- Voltage rating: 250V AC(RMS) or DC
- Contact resistance: 10mΩMax.
- Dielectric strength: 1500V AC/minute
- Temperature rise: 30°C max. (carry rated current load)
-
LT-MF300__F___-PS 3.0mm Pitch Female Crimp Terminal
Specifications
- Material: Phosphor bronze
- Used in LH-MF300M-__ series housing
- Wire range: #20 ~ #30 AWG
- Thickness: 0.2mm
- Current rating(Wire size/Ampere): #20/5A #22/5A #24/4A #26/3A #28/2A #30/1A
- Voltage rating: 250V AC(RMS) or DC
- Contact resistance: 10mΩMax.
- Dielectric strength: 1500V AC/minute
- Temperature rise: 30°C max. (carry rated current load)
