• Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC/ max.
    • Operating Temp: -25℃ ~ + 85℃
    • Insulation Resistance: 1000MΩ / min.
    • Withstanding Voltage: 800V AC/ min.
    • Contact Resistance: 20mΩ/ max.

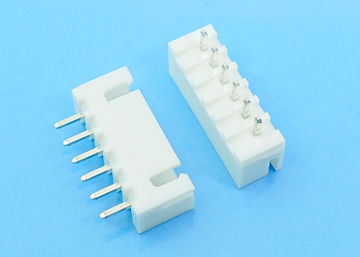

  • LW-XH250S-XX-X 2.5mm Pitch Single Row Wafer, 180° DIP

    Specifications

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25°C ~ +85°C
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding voltage: 1000V AC / minute
    • Terminal Material: Brass / Gold Flash
    • Material: Nylon 6T, UL94V-0
    • Solder Tab: Brass / Tin Plated

    Inquiry Info. PDF

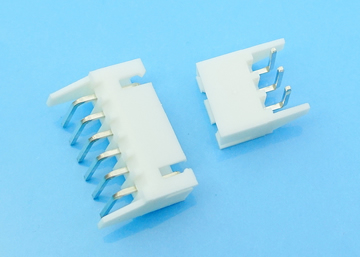

  • LW-XH250R-XX-X 2.5mm Pitch Single Row Wafer , 90° DIP

    Specifications

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25°C ~ +85°C
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding voltage: 1000V AC / minute
    • Terminal Material: Brass / Tin-plated
    • Material: Nylon 66, UL94V-0,Natural

    Inquiry Info. PDF

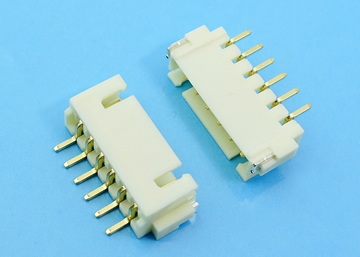

  • LW-XH250R-XXGO-S 2.5mm Pitch Single Row Wafer , 90° SMT

    Specifications

    • Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC Maximum
    • Operating Temp: -25°C ~ +85°C
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding voltage: 1000V AC / minute
    • Terminal Material: Brass / Gold Flash
    • Material: Nylon 6T, UL94V-0
    • Solder Tab: Brass / Tin Plated

    Inquiry Info. PDF

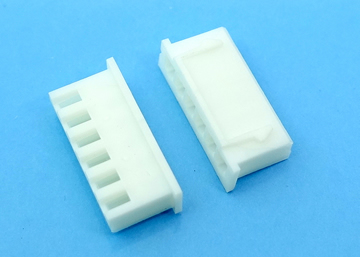

  • LH-XH250-XX 2.5mm Pitch Single Row Crimp Terminal Housing

    Specifications

    • Current rating : 3A AC,DC
    • Voltage rating : 250V AC,DC
    • Temperature range : -25°C to +85 °C
    • Conctact resistance : 10mΩ Max.
    • Insulation resistance : 1000MΩ Min.
    • Withstanding voltage : 800V AC/minute
    • Material : Nylon 66, UL94V-0

    Inquiry Info. PDF

  • LT-XH2501-PS 2.5mm Pitch Wire-to-Board Terminal

    Inquiry Info.
