• Current Rating: 3A AC, DC
    • Voltage Rating: 250V AC/ max.
    • Operating Temp: -25℃ ~ + 85℃
    • Insulation Resistance: 1000MΩ / min.
    • Withstanding Voltage: 800V AC/ min.
    • Contact Resistance: 20mΩ/ max.

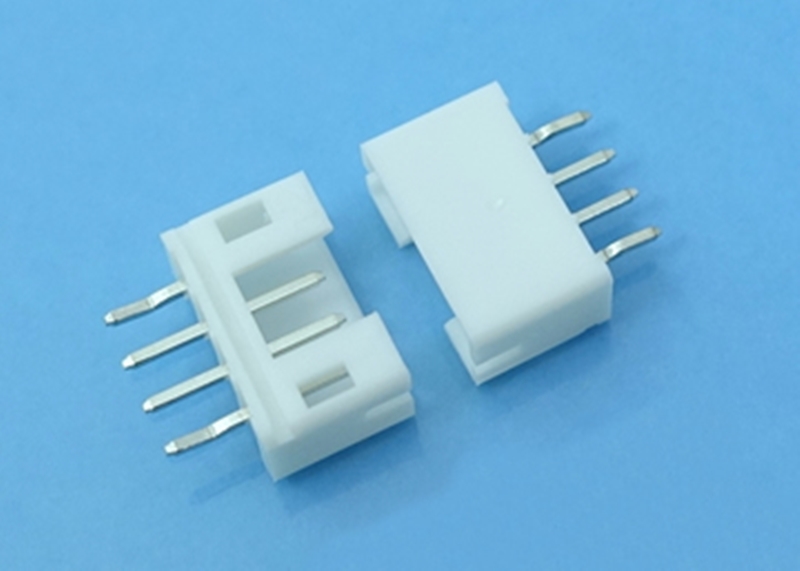

  • LW-PH200S- XX X 2.0mm Pitch Single Row Wafer,180° DIP

    Specifications

    • Current Rating: 3A AC/ DC (Max)AWG#22
    • Voltage Rating: 250V AC/ DC
    • Temperature Range: -25°C ~ + 85°C
    • Contact Resistance: 20mΩ Max
    • Insulation Resistance: 1000MΩ Min
    • Withstanding Voltage:800V AC/Minute
    • Pin : Brass/ Tin-plated
    • Wafer Material: Nylon 6T,UL94V-0,natural
    • Solder tab:Brass/Tin-plated

    Inquiry Info. PDF

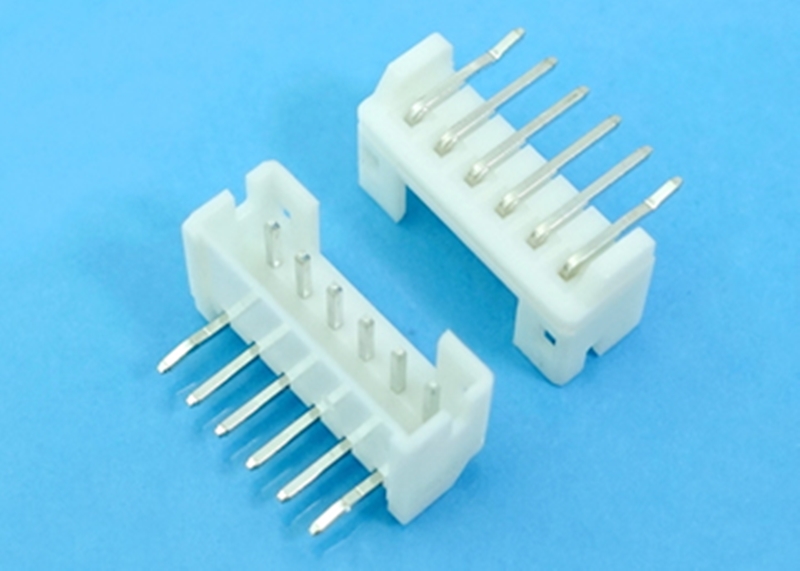

  • LW-PH200R- XX X 2.0mm Pitch Single Row Wafer ,90° DIP

    Specifications
    Electrical

    • Voltage Rating: 100V(AC)
    • Current Rating: 2A
    • Contact Resistance: 20m Ω max.
    • Dielectric Withstandeing Voltage: 800V AC/1min.
    • Insulation Resistance: 1000M Ω max.


    Material

    • Circuits: 2~16
    • Insulator: Nylon 66 UL 94V-0
    • Color: White
    • Contact: Brass 0.50mm(0.20") Square Pin
    • Plating: Tin Plated
    • Temperature Range: -25° C~+85° C
    • Applicable PC Board Thickness: 0.8 to 1.6mm

    Inquiry Info. PDF

  • LW-PH200S- XX-S 2.0mm Pitch Single Row Wafer, 180° SMT

    Specifications
    Electrical

    • Voltage Rating: 100V AC, DC
    • Current Rating: 2A AC, DC
    • Withstand Voltage: 800V AC/ min
    • Insulation Resistance: 1000MΩ/ min
    • Temperature Range: -40°C ~ +85°C


    Material

    • Wafer: High Temperature Plastic Nylon 6T UL94V-0
    • Pin: High Strength Brass With Tin Over Nickel Plated
    • Applicable PC Board Thickness: 0.8 ~ 1.6mm
    • Contact Resistance: Initial Value / 10mΩ max.
    • After environmental testing 20mΩ max.

    Inquiry Info. PDF

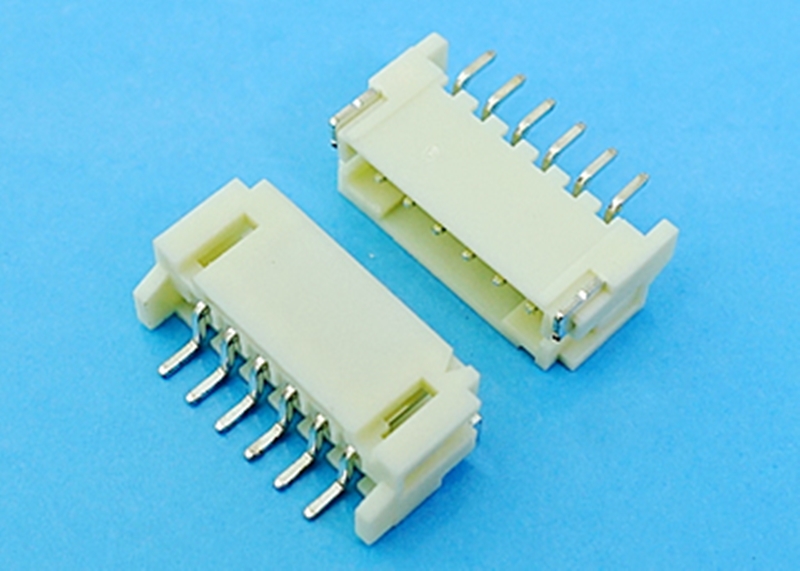

  • LW-PH200R- XX-S 2.0mm Pitch Single Row Wafer , 90° SMT

    Specifications
    Electrical

    • Voltage Rating: 100V AC, DC
    • Current Rating: 2A AC, DC
    • Withstand Voltage: 800V AC/ min
    • Insulation Resistance: 1000MΩ/ min
    • Temperature Range: -40°C ~ +85°C


    Material

    • Wafer: High Temperature Plastic Nylon 6T UL94V-0
    • Pin: High Strength Brass With Tin Over Nickel Plated
    • Applicable PC Board Thickness: 0.8 ~ 1.6mm
    • Contact Resistance: Initial Value / 10mΩ max.
    • After environmental testing 20mΩ max.

    Inquiry Info. PDF

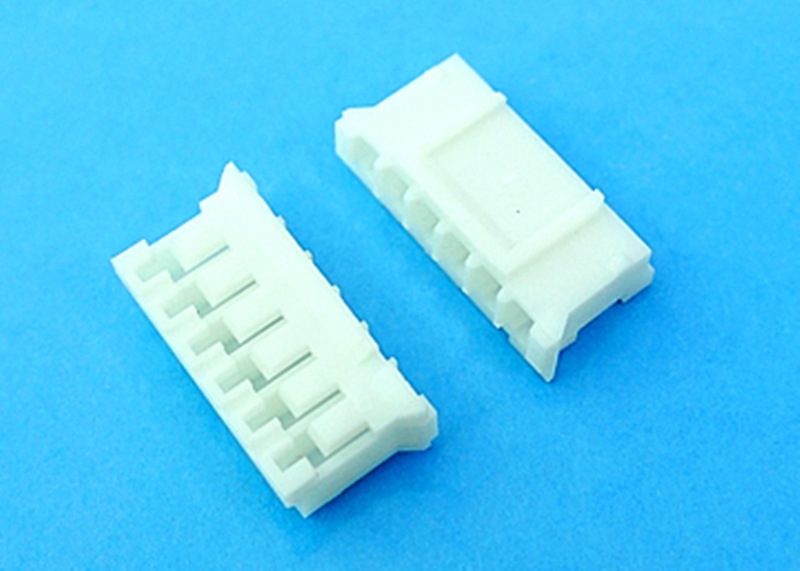

  • LH-PH200-XX 2.0mm Pitch Single Row Crimp Terminal Housing

    Specifications
    Electrical

    • Current Rating: 2A AC, DC
    • Voltage Rating: 100V AC max.
    • Operating Temp: -25°C ~ +85°C
    • Insulation Resistance: 1000MΩ min.
    • Dielectric Withstanding Voltage: 800V AC min.
    • Contact Resistance: 20mΩ max.


    Material

    • Material: Nylon 66, UL94V-0

    Inquiry Info. PDF

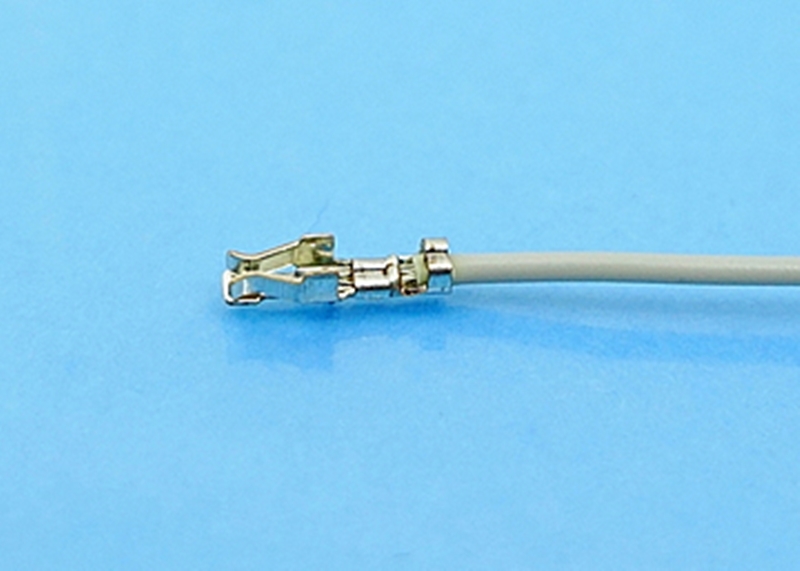

  • LT-PH2001-PS 2.0mm Pitch Wire-to-Board Terminal

    Specifications

    • Thickness: 0.2
    • Material: Phosphor Bronze
    • Wire Range: AWG #24~30
    • Insulation O.D.: 1.4-1.13 mm
    • Finish: Pre. Tin-Plated

    Inquiry Info. PDF

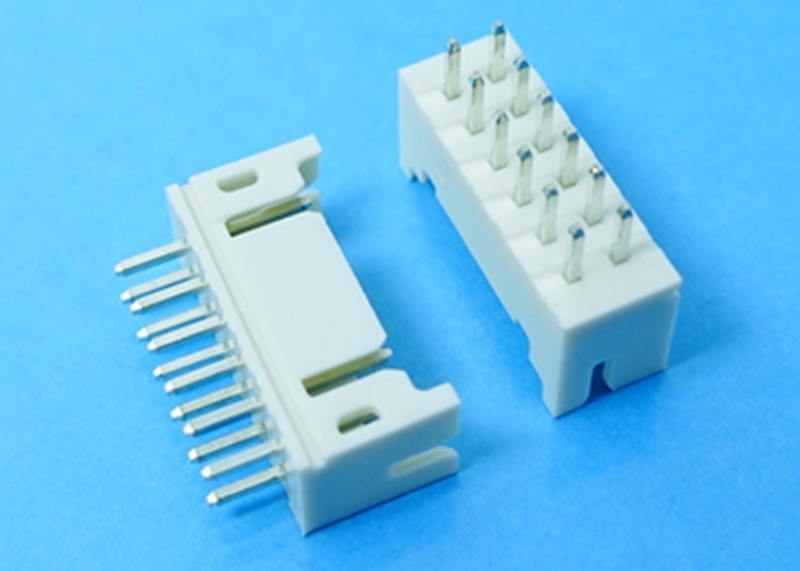

  • LW-PHD200S-2 x XX 2.0mm Pitch Dual Row Wafer, 180° DIP

    Specifications
    Electrical

    • Current Rating: 2A AC DC
    • Voltage Rating: 250V AC, DC
    • Operating Temp.: -25°C ~ +85°C
    • Contact Resistance: 20mΩ/ Max.
    • Insulation Resistance: 1000MΩ/ Min.
    • Withstanding voltage: 800V AC/minute


    Material

    • Material Pin: Brass / Tin-plated
    • Material: Nylon 66, UL 94V-0+GF

    Inquiry Info. PDF

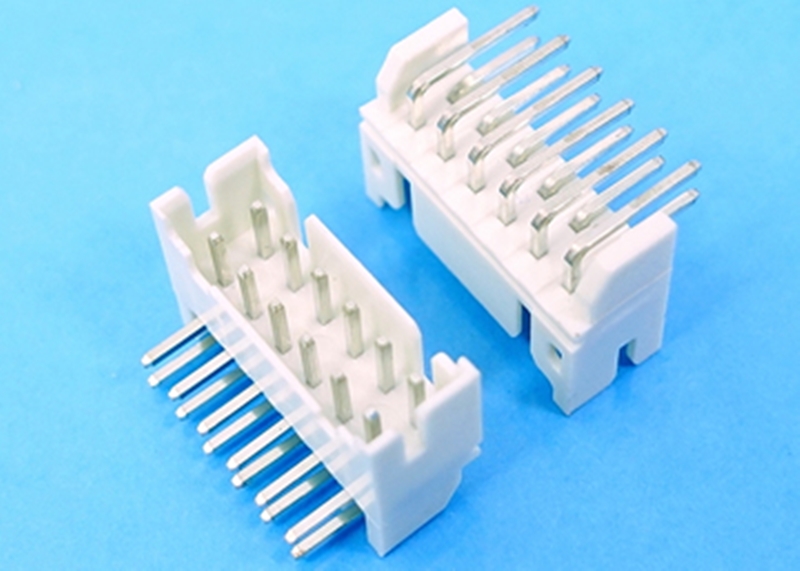

  • LW-PHD200R-2 x XX 2.0mm Pitch Dual Row Wafer ,90° DIP

    Specifications
    Electrical

    • Current Rating: 2A AC DC
    • Voltage Rating: 250V AC, DC
    • Operating Temp.: -25°C ~ +85°C
    • Contact Resistance: 20mΩ/ Max.
    • Insulation Resistance: 1000MΩ/ Min.
    • Withstanding voltage: 800V AC/minute


    Material

    • Material Pin: Brass / Tin-plated
    • Material: Nylon 66, UL 94V-0+GF

    Inquiry Info. PDF

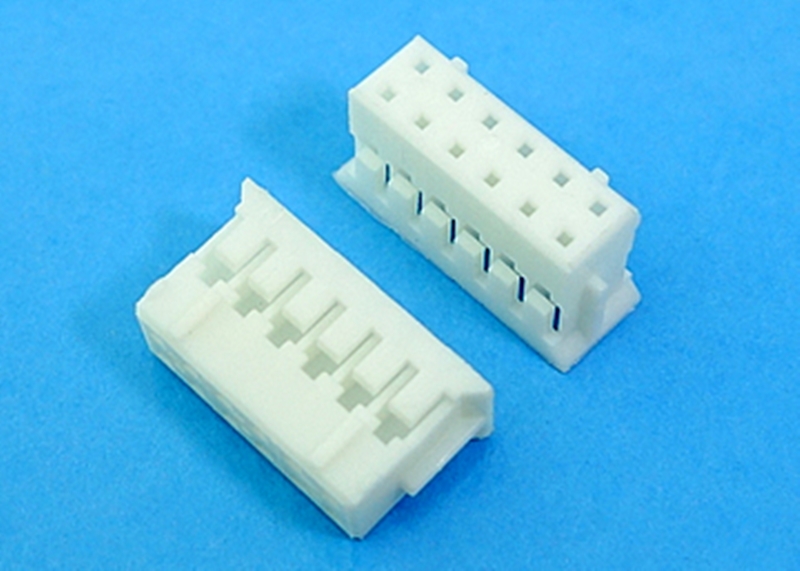

  • LH-PHD200-2 x XX 2.0mm Pitch Dual Row Crimp Terminal Housing

    Specifications

    • Current rating : 2A AC,DC
    • Voltage rating : 250V AC,DC
    • Temperature range : -25°C to +85 °C
    • Conctact resistance : 20mΩ Max.
    • Insulation resistance : 1000MΩ Min.
    • Withstanding voltage : 800V AC/minute
    • Material : Nylon 66, UL94V-0

    Inquiry Info. PDF

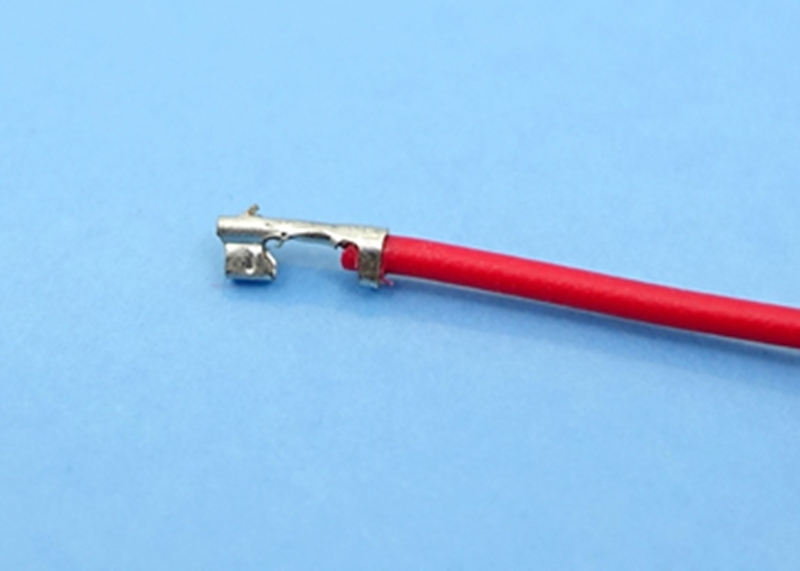

  • LT-PHD2001-PS 2.0mm Pitch Wire-to-Board Terminal

    Specifications

    • Material: Phosphor bronze
    • Finish: Tin-plated
    • Qty/reel: 10,000 pcs
    • Wire Range: AWG #22-#28

    Inquiry Info. PDF
