• DF14 Series

    • Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25℃~+85℃
    • Contact Resistance: 20mΩ/max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.
    • Pin Material: Phosphor Bronze, Tin-plated.
    • Solder Tabs: Brass, Tin-plated.
    • Material: Nylon 6T, UL94V-0
  • 1.25 mm Pitch Single Row Wafer, 90° SMT , With Post

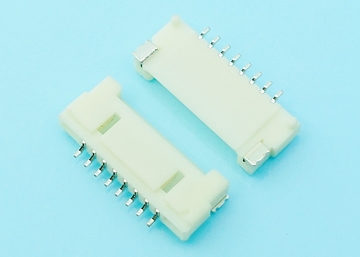

    LW-DF14R-XX(GO)-SP 1.25 mm Pitch Single Row Wafer, 90° SMT , With Post

    Inquiry Info. PDF

  • LH-DF14-XX 1.25mm Pitch Single Row Crimp Terminal Housing

    Inquiry Info.

  • 1.25 mm Pitch Single Row Wafer, 90° SMT ,

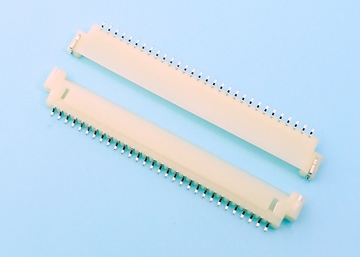

    LW-DF14R-XX-S 1.25 mm Pitch Single Row Wafer, 90° SMT ,

    Specifications


    • Current Rating: 1A AC,DC
    • Voltage Rating: 100V AC,DC
    • Temperature Range: -25°C ~ +85°C.
    • Contact Resistance: 20mΩ Max.
    • Insulation Resistance: 500MΩ Min.
    • Withstanding Voltage: 500V AC/Min.
    • Pin Material: Phosphor Bronze, Tin-plated.
    • Solder Tabs: Brass, Tin-plated.
    • Material: Nylon 6T, UL94V-0.

    Inquiry Info. PDF
