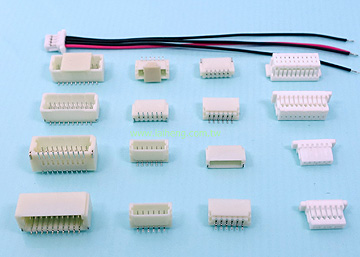

• SH(D)100 series

    SH(D)100 series

    • Cuttent Rating: 1A AC,DC
    • Voltage Rating:50V AC/ max.
    • Operating Temp.: -25℃~+85℃
    • Insulation Resistance: 100MΩ min.
    • Dielectric Withstanding Voltage: 500V AC/min.
    • Contact Resistance: 20mΩ/max

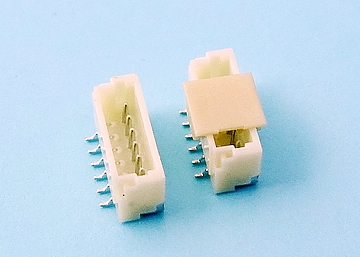

  • 1.0mm Pitch Single Row Wafer,180° SMT

    LW-SH100S-XX-SXX 1.0mm Pitch Single Row Wafer,180° SMT

    Specifications
    Electrical

    • Voltage Rating: 50V(AC)
    • Current Rating: 1.0A
    • Contact Resistance: 20mΩ max.
    • Dielectric Withstanding Voltage: 500V AC/1min.
    • Insulation Resistance: 100MΩ min.


    Material and Finish

    • Insulator: Nylon 6T, UL94V-0
    • Color: Natural
    • Temperature Range: -40°C~+105°C
    • Contact: Phosphor Bronze, Tin-Plated

    Inquiry Info. PDF

  • 1.0mm Pitch Single Row Wafer , 90° SMT

    LW-SH100R-XX-SX 1.0mm Pitch Single Row Wafer , 90° SMT

    Specifications
    Electrical

    • Voltage Rating: 50V(AC)
    • Current Rating: 1.0A
    • Contact Resistance: 20mΩ max.
    • Dielectric Withstanding Voltage: 500V AC/1min.
    • Insulation Resistance: 100MΩ min.


    Material and Finish

    • Insulator: Nylon 6T, UL94V-0
    • Color: Natural
    • Contact: Phosphor Bronze, Tin-Plated
    • Temperature Range: -40°C~+105°C

    Inquiry Info. PDF

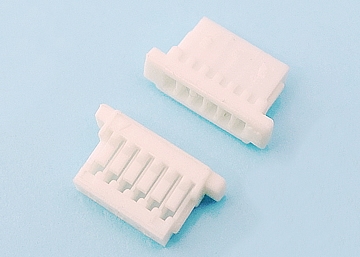

  • 1.0mm Pitch Single Row Crimp Terminal Housing

    LH-SH100-XX 1.0mm Pitch Single Row Crimp Terminal Housing

    Specifications
    Electrical

    • Current Rating: 1A AC, DC
    • Voltage Rating: 50V AC/ max.
    • Operating Temp.: -25°C ~ +85°C
    • Insulation Resistance: 100MΩ/ min.
    • Dielectric Withstanding Voltage: 500V AC/ min.
    • Contact Resistance: 20mΩ/ max.


    Material

    • Material: PBT, UL94V-0

    Inquiry Info. PDF

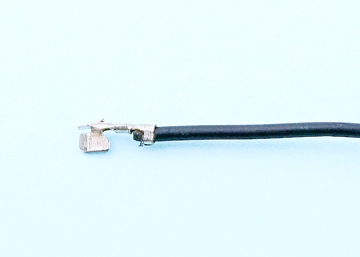

  • 1.0mm Pitch Wire-to-Board Terminal

    LT-SH1001-PS 1.0mm Pitch Wire-to-Board Terminal

    Specifications
    Electrical

    • Current Rating: 1A AC, DC
    • Voltage Rating: 50V AC/ max.
    • Operating Temp.: -25°C ~ +85°C
    • Insulation Resistance: 100MΩ/ min.
    • Dielectric Withstanding Voltage: 500V AC/ min.
    • Contact Resistance: 20mΩ/ max.

    Material

    • Terminal maetrial: Phosphor Bronze/ Tin-plated
    • Wire Range: 28 to 32AWG

    Inquiry Info. PDF

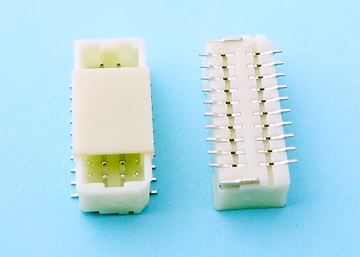

  • 1.0mm Pitch Dual Row Wafer, 180° SMT (CAP)

    LW-SHD100S-2 x XX-SX 1.0mm Pitch Dual Row Wafer, 180° SMT (CAP)

    Specifications
    Electrical

    • Voltage Rating: 50V(AC)
    • Current Rating: 1.0A
    • Contact Resistance: 20mΩ max.
    • Dielectric Withstanding Voltage: 500V AC/1min.
    • Insulation Resistance: 100MΩ min.


    Material

    • Circuits: 20,30,40,50
    • Insulator: High Tempera Ture Plastic UL94V-0
    • Color: Natural
    • Contact: Phosphor Bronze, Tin-Plated
    • Plating: Tin plated.
    • Temperature Range: -25°C ~ +85°C.

    Inquiry Info. PDF

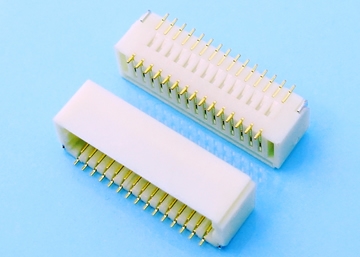

  • LW-SHD100S-2 x XXGO-SC 1.0mm Pitch Dual Row Wafer, 180° SMT, Gold Plated,CAP

    Specifications
    Electrical

    • Voltage Rating: 50VAC DC.
    • Contact Rating: 1.0A AC DC (AWG 28).
    • Contact Resistance: Initial value/20 mΩ max; After environmental testing/40 mΩ max.
    • Insulator Resistance: 100 MΩ min.
    • Temperature Range: -25°C to +85°C.
    • Withstanding voltage: 500V AC/minute.


    Material

    • Insulator: Nylon 6T, UL94V-0
    • Insulator Color: Natural.
    • Contact: Phosphor Bronze, Gold-Plated.
    • Solder tad: Brass, Copper-undercoated, Tin-Plated.

    Inquiry Info. PDF

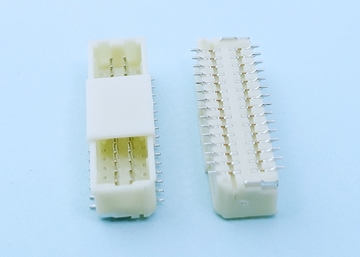

  • 1.0mm Pitch Dual Row Wafer, 180° SMT, Gold Plated,With Post

    LW-SHD100S-2 x XXGO-SP 1.0mm Pitch Dual Row Wafer, 180° SMT, Gold Plated,With Post

    Specifications
    Electrical

    • Voltage Rating: 50VAC DC
    • Current Rating: 1.0A AC DC
    • Contact Resistance: Initial value/20mΩ max; After environmental testing/40mΩ max.
    • Insulation Resistance: 100MΩ min.
    • Temperature Range: -25°C ~ +85°C.
    • Withstanding voltage: 500V AC/minute.


    Material and Finish

    • Header Contact: Phosphor Bronze,
    • Wafer: Glass-filled polyamide, UL94V-0.
    • Nickel-undercoated, Tin-Plated.
    • Color: Natural (Ivory).
    • Solder Tad: Brass, Copper-undercoated, Tin-plated.

    Inquiry Info. PDF

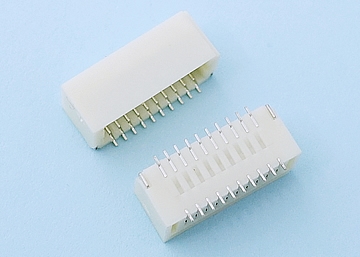

  • 1.0mm Pitch Dual Row Wafer , 90° SMT

    LW-SHD100R-2 x XX-S 1.0mm Pitch Dual Row Wafer , 90° SMT

    Specifications
    Electrical

    • Voltage Rating: 50VAC DC.
    • Contact Rating: 1.0A AC DC (AWG 28).
    • Contact Resistance: Initial value/20 mΩ max; After environmental testing/40 mΩ max.
    • Insulator Resistance: 100 MΩ min.
    • Temperature Range: -25°C to +85°C.
    • Withstanding voltage: 500V AC/minute.


    Material and Finish

    • Insulator: Nylon 6T, UL94V-0
    • Insulator Color: Natural.
    • Contact: Phosphor Bronze, Tin-Plated.
    • Solder tad: Brass, Copper-undercoated, Tin-Plated.n-Plated.

    Inquiry Info. PDF

  • 1.0mm Pitch Dual Row Wafer , 90° SMT,Gold Plated

    LW-SHD100R-2 x XXGO-S 1.0mm Pitch Dual Row Wafer , 90° SMT,Gold Plated

    Specifications
    Electrical

    • Voltage Rating: 50VAC DC.
    • Contact Rating: 1.0A AC DC (AWG 28).
    • Contact Resistance: Initial value/20 mΩ max; After environmental testing/40 mΩ max.
    • Insulator Resistance: 100 MΩ min.
    • Temperature Range: -25°C to +85°C.
    • Withstanding voltage: 500V AC/minute.


    Material and Finish

    • Insulator: Nylon 6T, UL94V-0
    • Insulator Color: Natural.
    • Contact: Phosphor Bronze, Gold-Plated.
    • Solder tad: Brass, Copper-undercoated, Tin-Plated.

    Inquiry Info. PDF

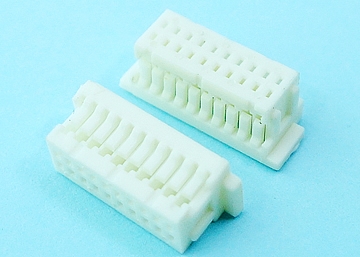

  • 1.0mm Pitch Dual Row Crimp Terminal Housing

    LH-SHD100-2 x XX 1.0mm Pitch Dual Row Crimp Terminal Housing

    Specifications
    Electrical

    • Current Rating: 1A AC, DC
    • Voltage Rating: 50V AC/ max.
    • Operating Temp.: -25°C ~ +85°C
    • Insulation Resistance: 500MΩ/ min.
    • Dielectric Withstanding Voltage: 500V AC/ min.
    • Contact Resistance: 20mΩ/ max.


    Material

    • Material: PBT, UL94V-0

    Inquiry Info. PDF
